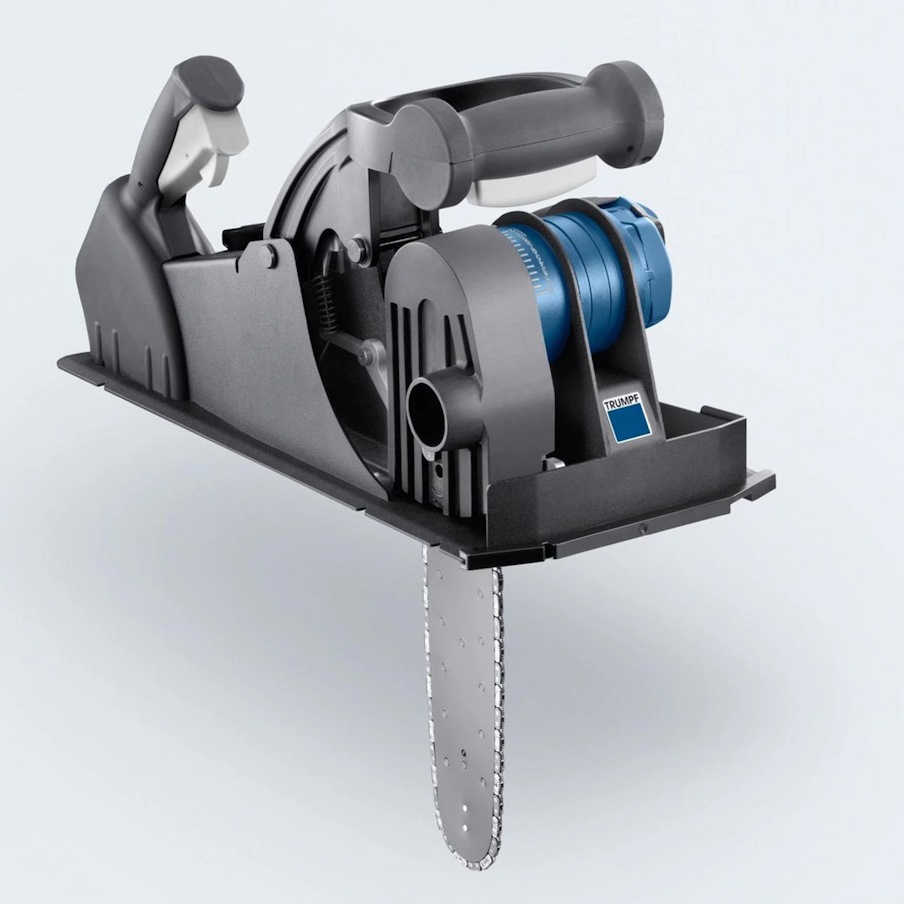

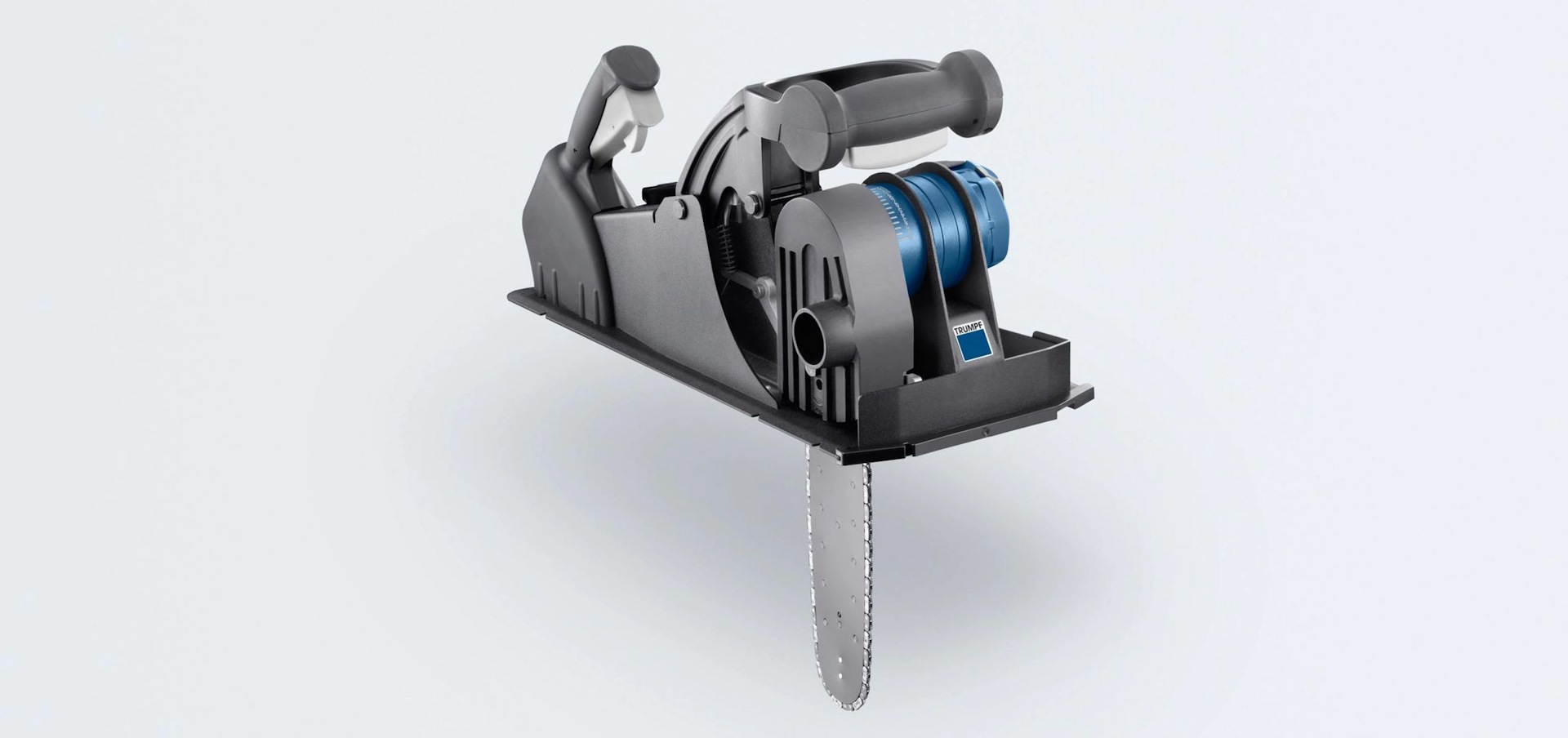

TruTool TPC 165 Panel Cutter

(1 customer review)

£2,350.00 +VAT

Perfect cuts straight away.

  • With the TruTool TPC 165 panel cutter, you can cut sandwich panels up to a thickness of 6.5 in.
  • The blade insertion mechanism enables the production of accurate, perpendicular interior cutouts and notches. In one operation.
  • The machine is ready for operation without pre-settings. Simply select the correct blade position and begin cutting.
  • The TruTool TPC 165 can cut panels regardless of whether the surface is flat, trapezoidal, or corrugated.

We service too!

If you work near us then you can also bring your panel cutting tool in for servicing at our specialist workshop. We are based centrally in Cullompton, Devon close to Tiverton, Exeter, Exmouth, Sidmouth, Honiton, Axminster, Seaton, Chard and Taunton.

Categories: ,
Share
Tweet
Email

Perfect cuts straight away

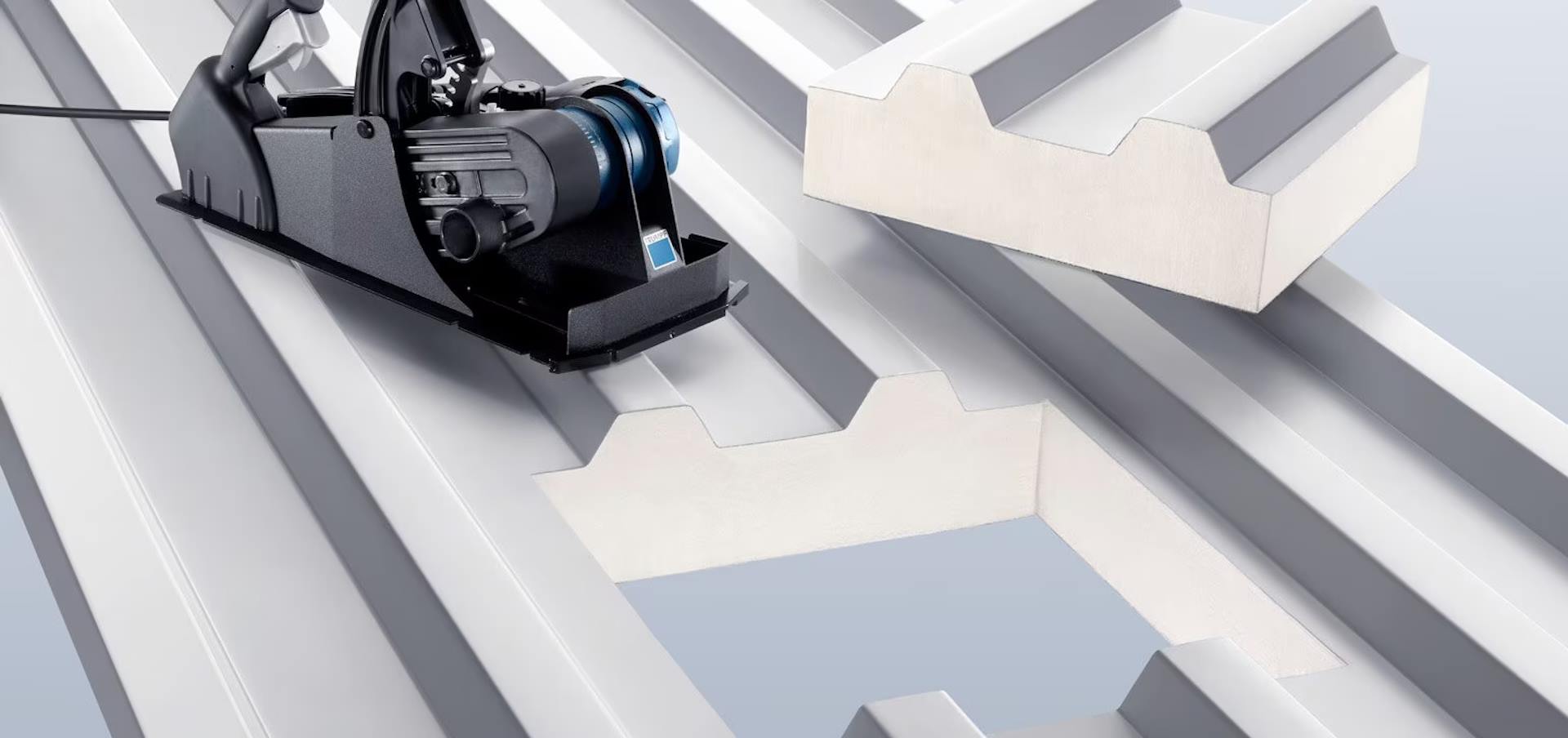

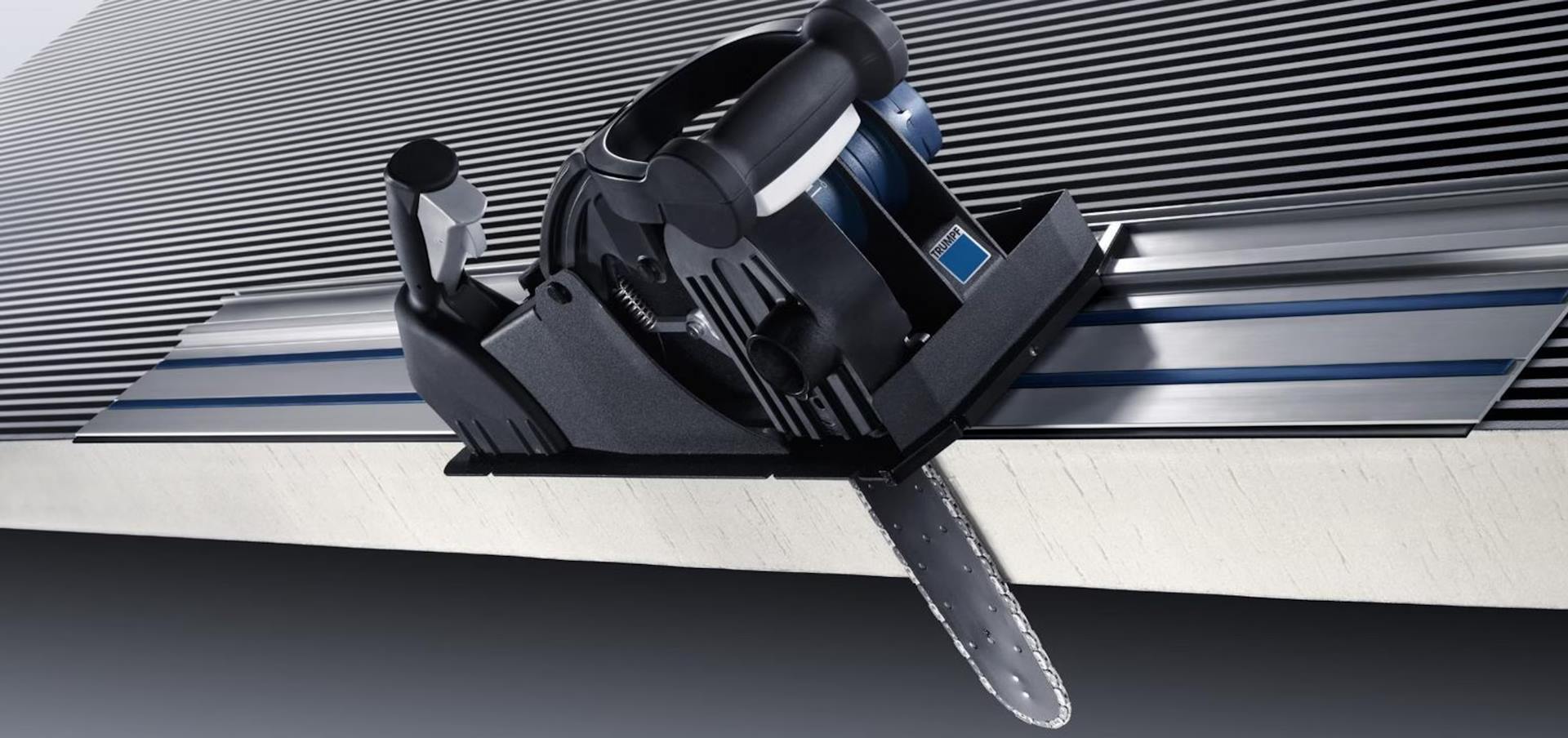

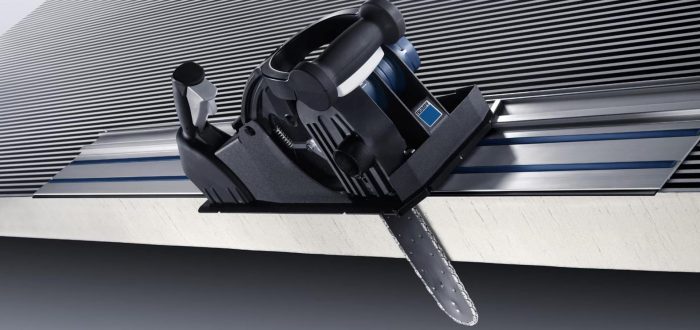

With the TruTool TPC 165 panel cutter, you can cut sandwich panels up to a thickness of 6.5 in. The blade insertion mechanism enables the production of accurate, perpendicular interior cutouts and notches. In one operation. The machine is ready for operation without pre-settings. Simply select the correct blade position and begin cutting.

The TruTool TPC 165 can cut panels regardless of whether the surface is flat, trapezoidal, or corrugated.

Perpendicular cuts

  • Swiveling 90° blade, well-suited for perpendicular cutouts with a depth of up to 6.5 inches.

Unique

  • With the insertion mechanism, you can start at any position on the panels.

Up to four meters per minute

  • You can cut the upper and lower sheets in one press operation, without the need for reworking.

Compact and light

  • The TruTool TPC 165 weighs just 9.6 kg and is based on a sheet design that is both stable and light.

Loading...

Flat Sandwich Panels

  • Roof panels. Steel or aluminium surface.
  • Insulation material: Polyurethane foam, polyisocyanurate foam.
  • For panel thicknesses up to 6.5 inches

Corrugated sandwich panels

  • Roof panels. Steel or aluminium surface.
  • Insulation material: Polyurethane foam, polyisocyanurate foam.
  • For panel thicknesses up to 6.5 inches.

Trapezoidal sandwich panels up to 6.5 inches deep

  • Roof panels. Steel or aluminium surface.
  • Insulation material: Polyurethane foam, polyisocyanurate foam.
  • For panel thicknesses up to 6.5 inches.

The following consumables and the corresponding accessories are included

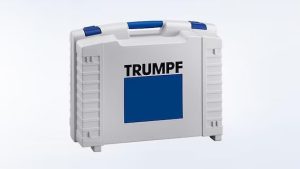

Case

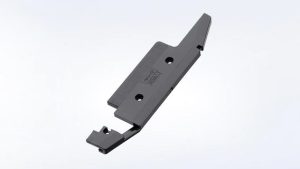

Wear Plate, Front

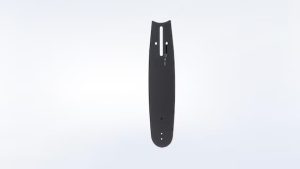

Blade 165 (integrated)

Wear plate (integrated)

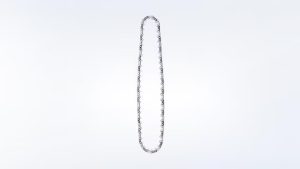

Saw chain 165 (integrated)

Slide rail (integrated)

Punching and nibbling oil for steel, 17 oz

Combination wrench

Find the right consumables and accessories for your machine here

Wear Plate, Front

Blade 165

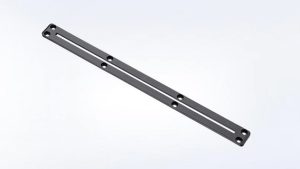

Wear plate

Saw chain 165

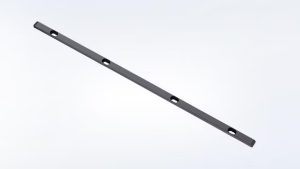

Slide rail (integrated)

Connector

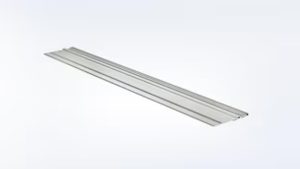

Guide Rail

TruTool TPC 165Technical Data

PANEL CUTTER
Maximum panel thickness165 mm
Maximum individual material thickness for steel up to 400 N/mm²0.9 mm
Insulation materialPolyurethane foam, polyisocyanurate foam
Smallest possible opening by piercing340 mm x 340 mm
GENERAL
Working speed (max.)4 m/min
Cutting track width4 mm
Nominal power consumption1600 W
DIMENSIONS
Length493 mm
Height231 mm
Weight9.6 kg

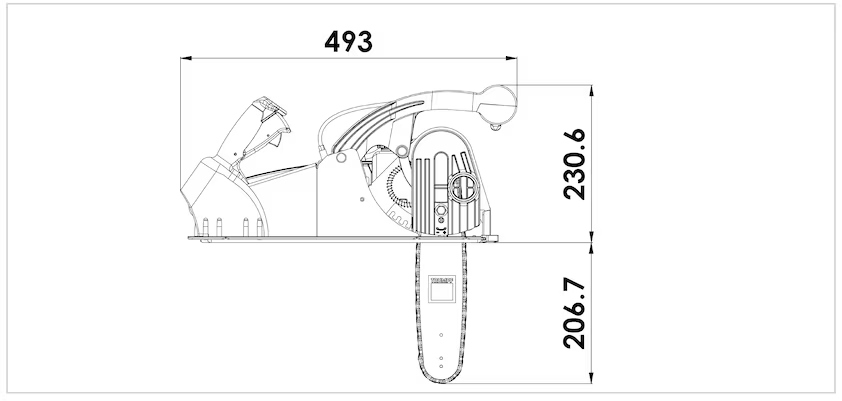

TruTool TPC 165, dimensional drawing

TruTool TPC 165, dimensional drawing

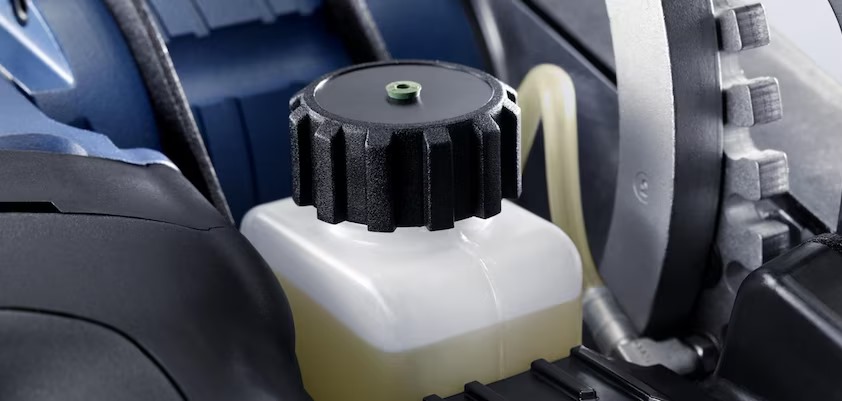

Integrated chain lubrication

No heating up of the chain. The automatic lubrication ensures a constant cut quality together with a long tool life.

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
